| Application/type |
Contact sensor, Cable sensor |
| Purpose |
Measure values |
| Measured values |
temperature |
| Interface |
Passive |
| On stock |
Yes |
| Sensor |
SI-Protection against permeation of humidity and mechanical stress (e.g. vibration), Pt1000 DIN cl. B, Pt100 DIN cl. B, Pt1000 1/3 DIN, Pt100 1/3 DIN, Ni1000 DIN cl. B, Ni1000TK5000, NTC10k, NTC10k Precon, NTC10k Carel, NTC20k, NTC1,8k, NTC5k, passive |
| Operating range temperature (°C) |
-50..+135 |
| Operating ranges temperature (°C) |
-35..+100, -50..+135 |
| Operating range humidity |
max. 85% rH short term condensation |
| Accuracy temperature |
±0,1 K (typ. at 0 °C), ±0,3 K (typ. at 0 °C), ±0,4 K (typ. at 0 °C), ±0,2 K (typ. at 25 °C), ±0,2 K (typ. at 25 °C, temperature dependend), ±0,3 K (typ. at 25 °C, temperature dependend), see characteristic curve |
| Material in touch with media |

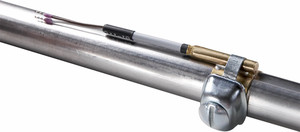

Sensor probe, Ø=6 mm, brass, with contact tongue, 16-point pressed (IP65) |
| Installation length (mm) |
35 |
| Protection (IP) |
IP65, according to EN 60529 |
| Connection cable |
PVC, silicone, 0,25 mm², 2-wire, 3-wire, 4-wire |
| Length connection wire (m) |
1, 2, 4, 6 |
| Gefahrgut |
No |
