| Application/type |

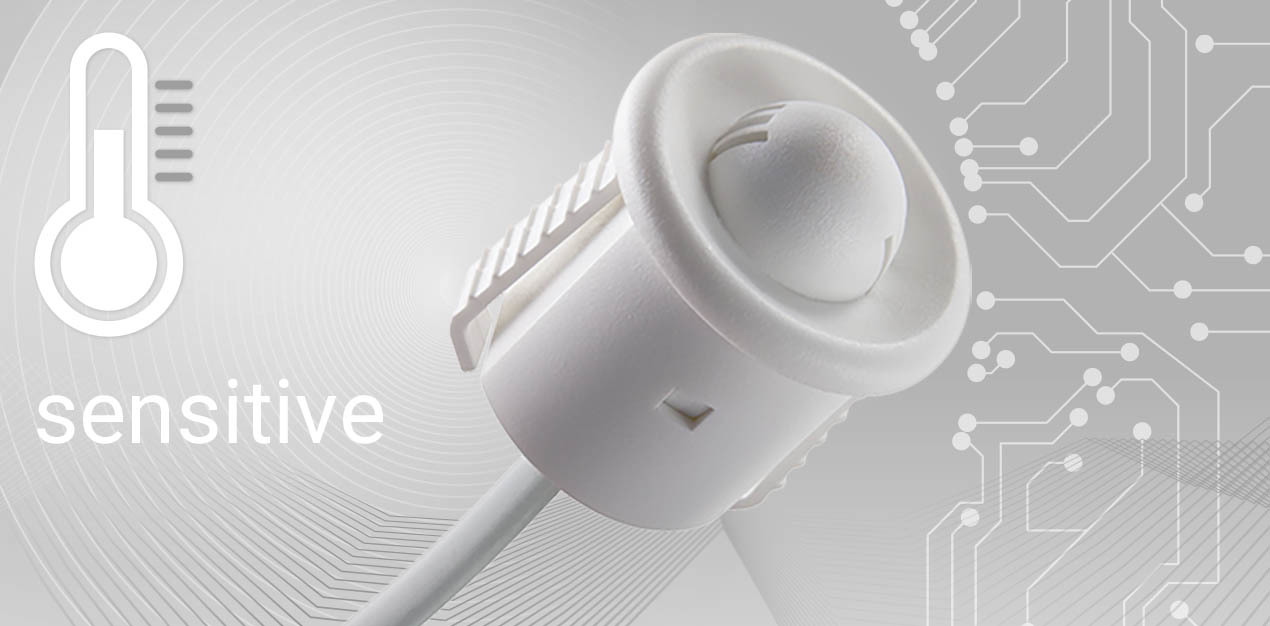

Ceiling sensor, Room sensor |
| Purpose |
Measure values |
| Measured values |
temperature |
| Interface |
Passive |
| On stock |
No |
| Sensor |
Pt1000 DIN cl. B, Pt100 DIN cl. B, Pt1000 1/3 DIN, Pt100 1/3 DIN, Ni1000 DIN cl. B, Ni1000TK5000, NTC10k, NTC10k Precon, NTC20k, NTC1,8k, LM235Z, passive |
| Operating range temperature (°C) |
-35..+70 |
| Operating range humidity |
max. 85% rH non-condensing |
| Accuracy temperature |
±0,3 K (typ. at 0 °C), ±0,4 K (typ. at 0 °C), ±0,2 K (typ. at 25 °C, temperature dependend), depending on length of connection wire and sensor |
| Material in touch with media |
Sensor head, Ø=30 mm, ABS, white |
| Protection (IP) |
IP30, according to EN 60529 |
| Connection cable |
PVC, 0,25 mm², 2-wire, 3-wire, 4-wire, grey |
| Length connection wire (m) |
1, 2, 4, 6 |
| Mounting |
facet mounting |
| Packaging length (mm) |
90 |
| Packaging width (mm) |
90 |
| Packaging height (mm) |
35 |
| Packaging |
case packaging |
| Device length (mm) |
37 |
| Device width (mm) |
30 |
| Device height (mm) |
30 |
| Notes |
active types for temperature and humidity available (FT-RDF18+) |
| Gefahrgut |
No |
