| Application/type |
Immersion sensor, Duct sensor |
| Purpose |
Measure values |
| Measured values |
temperature |
| Interface |
Passive, Active, 0..10 V, 4..20 mA |
| Sensor |
Pt1000 DIN cl. B, Pt100 DIN cl. B, passive |
| Output voltage |
0..10 V, min. load 5 kΩ |
| Output current |
4..20 mA, max. load 500 Ω |
| Operating range temperature (°C) |
0..+600 |
| Operating ranges temperature (°C) |
0..+400, 0..+600 |
| Output signal temperature |
0..+400 °C, 0..+600 °C |
| Operating range humidity |
max. 85% rH short term condensation |
| Accuracy temperature |
±0,2 K (typ. at 21 °C) | ±0,1% of measured value (typ. at 21 °C), ±0,3 K (typ. at 0 °C) |
| Power supply |
15..24 V = (±10%) SELV, 15..35 V = SELV, 15..26 V ~ SELV |
| Power consumption |
typ. 0,5 W (24 V =), typ. 1 W (24 V =), 0,8 VA (24 V ~) |
| Material in touch with media |

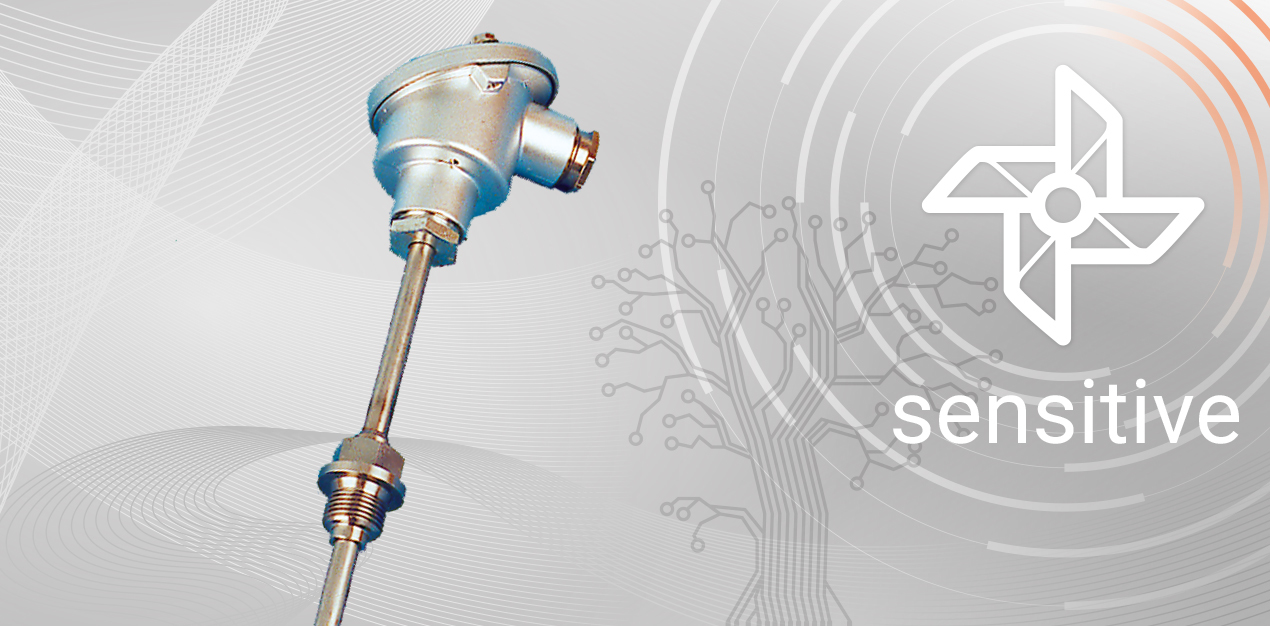

Sensor probe, Ø=9 mm, stainless steel V4A (1.4571), SW24, G1/2", Neck pipe, stainless steel V2A (1.4305), Ø=9 mm, length 100 mm, suitable for usage in aggressive media |
| Installation length (mm) |
250, 500 |
| Enclosure |
shape B, aluminium |
| Protection (IP) |
IP66, according to EN 60529 |
| Connection |
cable entry M20 for wire Ø=8 mm, terminal block, max. 1,5 mm² |
| Connection cable |
3-wire |
| Packaging length (mm) |
400 |
| Packaging width (mm) |
130 |
| Device length (mm) |
78 |
| Device width (mm) |
70 |
| Gefahrgut |
No |
