| Application/type |

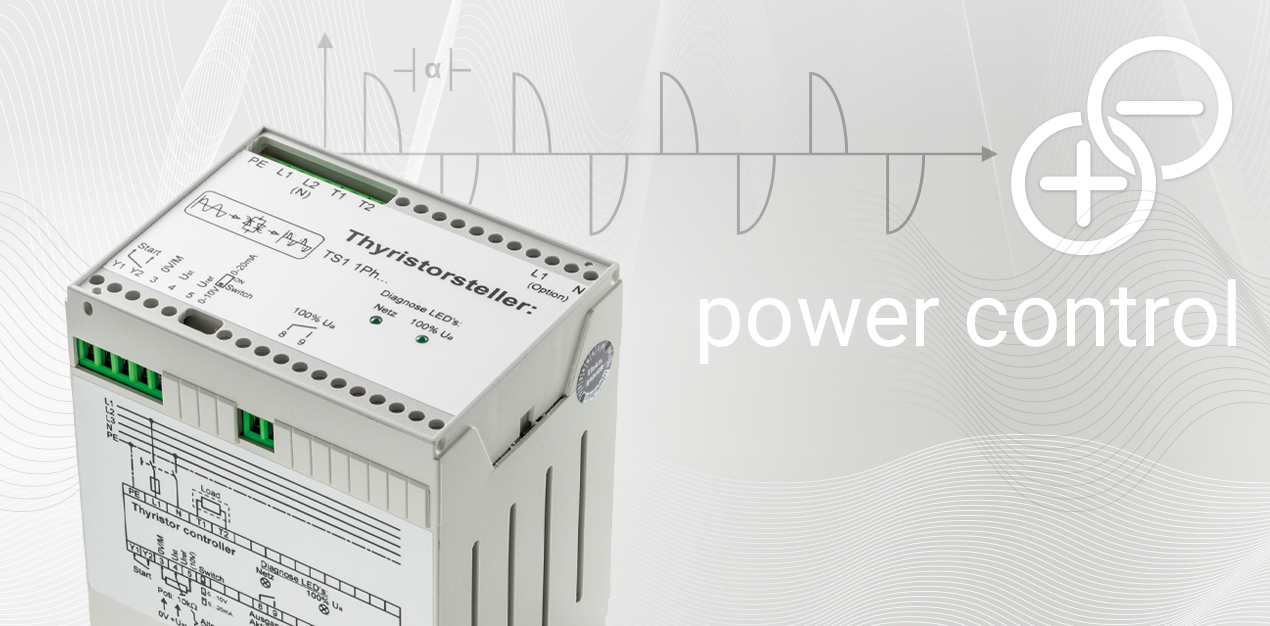

Power thyristors |
| Configuration |
DIP switches |
| Output voltage |
reference voltage for potentiometer: 10 V = |
| Output switch contact |
signal contact at 100% Ua, 1x contact NO, 3A for 250 V ~ or 24 V =, floating, output for ohmic and inductive loads, 1,2 kW (400 V ~ / 2 A), 2,5 kW (400 V ~ / 4 A), 4 kW (400 V ~ / 6 A), 5 kW (400 V ~ / 8 A), 6,5 kW (400 V ~ / 10 A) |
| Input |
input for potentiometer 2,5..10 kΩ, electrical activation via setpoint signal 0..10 V = or 0..20 mA, optionally configurable |
| Operating range temperature (°C) |
0..+45 |
| Power supply |
L1, L2, L3, N: 400 V ~ 48..62 Hz, self-synchronizing |
| Power consumption |
typ. 7 W, typ. 13 W, typ. 19 W, typ. 25 W, typ. 31 W |
| Enclosure |
PA |
| Protection (IP) |
IP40, terminal blocks IP23, according to EN 60529 |
| Connection |
terminal block, max. 2,5 mm² |
| Mounting |
prepared for mounting on DIN rail TS35 (35x7,5 mm) according to EN 60715 |
| Device length (mm) |
100 |
| Device height (mm) |
110 |
| Notes |
types up to 4 A with cooling plate, types 6 A with heat sink, types 8 A and higher with heat sink and fan |
| Catalogue table |
Power thyristors |
| Gefahrgut |
No |
