| Application/type |

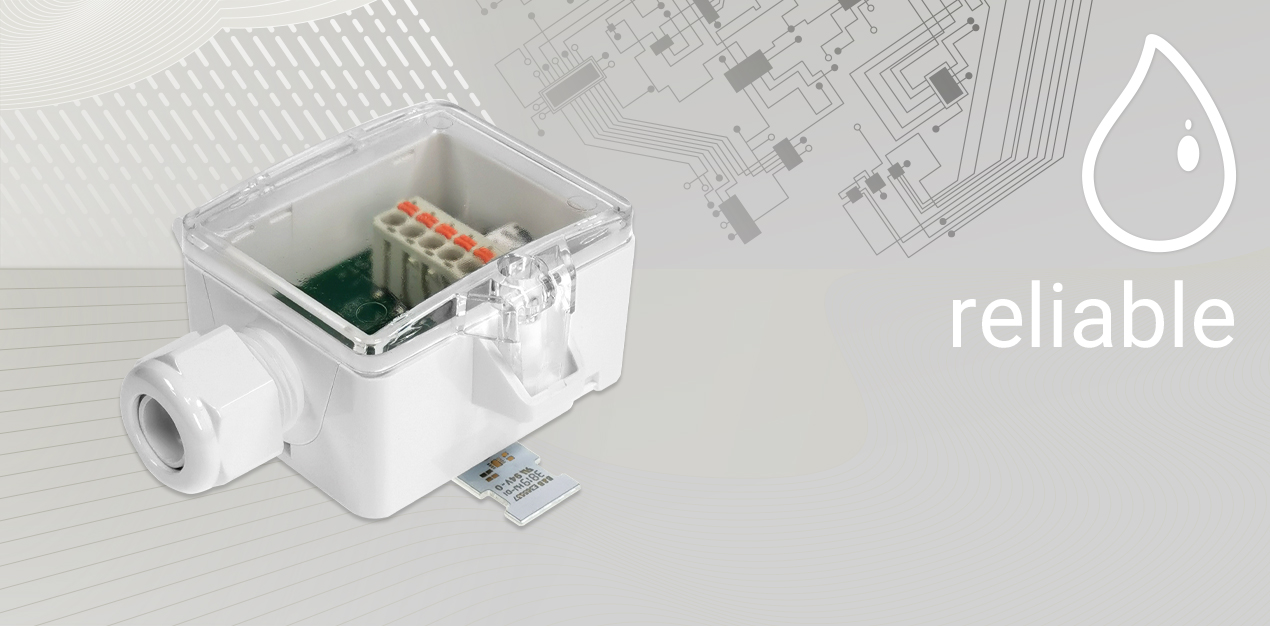

Condensation sensor |
| Purpose |
Measure values |
| Measured values |
condensation |
| Interface |
Switch contact |
| Output switch contact |
changeover contact, 1 A resisitve load, 0,5 A resisitve load, max. 24 V, max. 230 V ~, floating |
| Operating range temperature (°C) |
-20..60 |
| Operating ranges temperature (°C) |
0..+50, -20..+60 |
| Operating range humidity |
max. 85% rH short term condensation |
| Accuracy humidity |
potentiometer to adjust the sensitivity |
| Power supply |
15..24 V = (±10%) SELV, 24 V ~ (±10%) SELV, 230 V ~ (±10%) |
| Power consumption |
typ. 0,8 W (24 V =), typ. 3,5 W (230 V ~), 1,6 VA (24 V ~) |
| Enclosure |
USE-S, impact- and shock-resistant enclosure with quick-release cover, PC, USE-M, impact- and shock-resistant enclosure with quick-release cover, PC |
| Colour |
pure white, transparent cover |
| Protection (IP) |
IP65, according to EN 60529 |
| Connection |
removable cable entry flextherm M20 for wire Ø=4,5..9 mm, removable plug-in terminal, max. 2,5 mm² |
| Connection cable |
PVC, 0,25 mm², grey |
| Length connection wire (m) |
1, 2, 6 |
| Delivery content |
incl. mounting base enclosure USE-S pure white, incl. mounting base enclosure USE-M pure white, incl. mounting set (screws and accessories), incl. cable tie 140x3,6 mm, incl. syringe thermal contact fluid 1 ml |
| Packaging |
case packaging |
| Notes |
flush-mounted type WK01 UP available in various switch ranges |
| Gefahrgut |
No |
