MCS
MCS SR Occ Lum white
Motion detector, Room sensor luminosity, motion | EnOcean (868 MHz)
| Application/type | Motion detector, Room sensor |
|---|---|
| Purpose | Room Climate Control |
| Sensor elements | luminosity, motion |
| Measured values | luminosity, motion, presence |
| Interface | EnOcean (868 MHz) |
| On stock | No |
| Radio technology | EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW |
| Data transmission | unidirectional |
| Operating range temperature (°C) | 0..+40 |
| Operating ranges temperature (°C) | 0..+40 |
| Operating range humidity | max. 85% rH non-condensing |

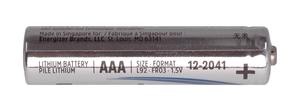

| Power supply | battery type AAA |
| Enclosure | PC V0 |
| Colour | pure white |
| Protection (IP) | IP20, according to EN 60529 |
| Mounting | surface-mounted flat on base using included adhesive pad or screws |
| Delivery content | incl. adhesive foil for mounting, incl. battery type AAA |
| Packaging length (mm) | 150 |
| Packaging width (mm) | 100 |
| Device width (mm) | 21 |
| Device height (mm) | 15 |
| Gefahrgut | No |
