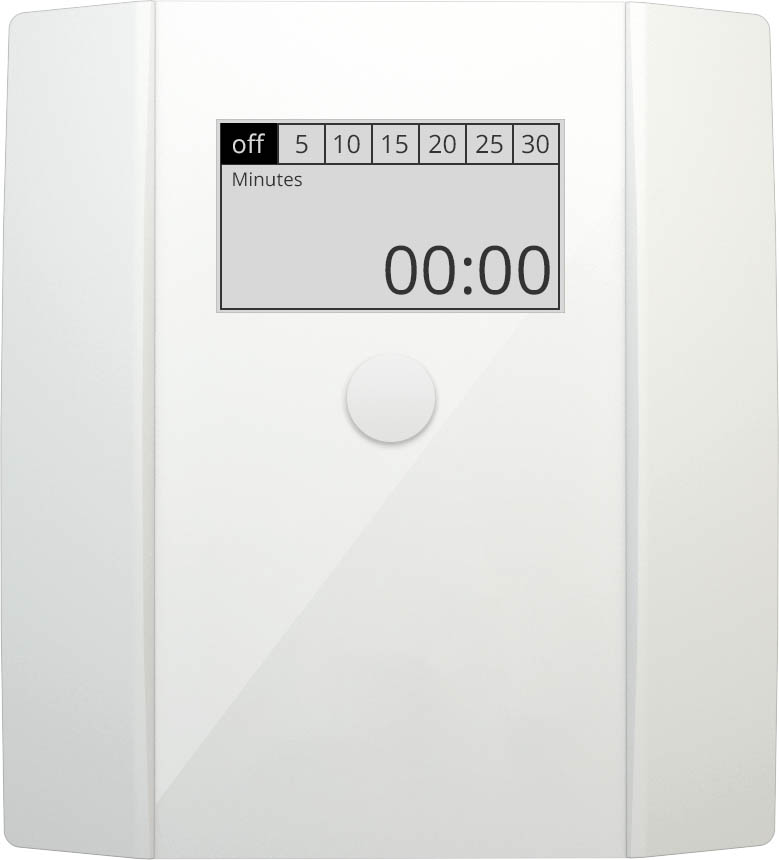

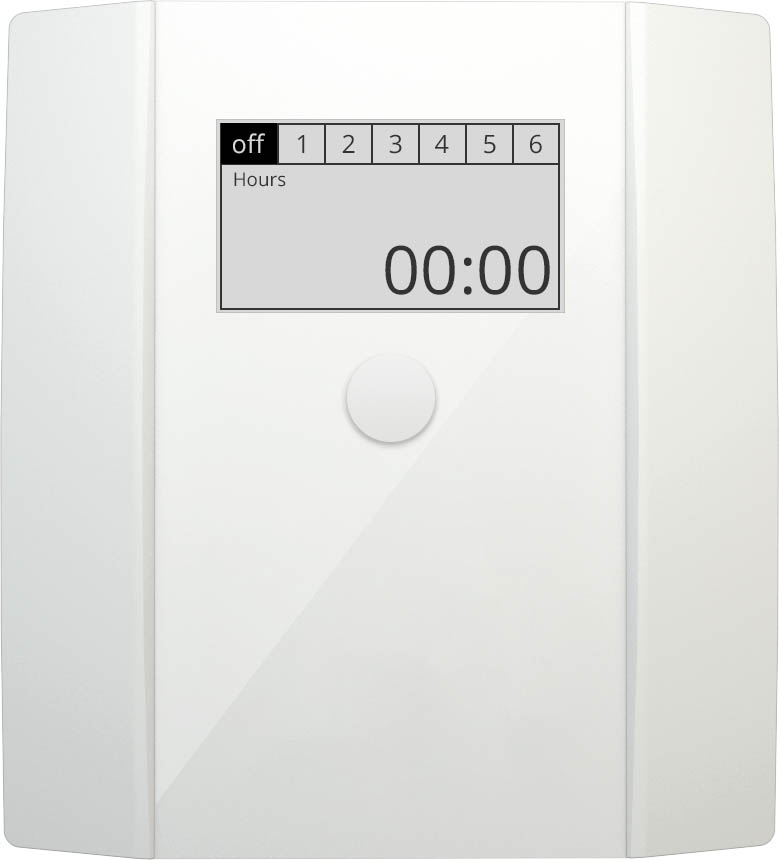

NOVOS 3 Timer
NOVOS 3 Timer white
Room operating unit | Switch contact
Room Climate Control, Lighting control
| Application/type | Room operating unit |
|---|---|
| Purpose | Room Climate Control, Lighting control |
| Interface | Switch contact |
| On stock | No |
| Functions | signal contact, switch actuator |
| Operating elements | button (T) |
| Configuration | DIP switches |
| Output switch contact | changeover contact |
| Operating ranges temperature (°C) | -20..+70 |
| Operating range temperature enclosure (°C) | -20..+70 |
| Operating range humidity | max. 85% rH non-condensing |
| Power supply | 24 V = (±10%) SELV, 24 V ~ (±10%) SELV, 230 V ~ (±10%) |
| Power consumption | 1,2 VA (24 V ~) |
| Display | ePaper Display 44x24 mm, RGB LED, green |
| Enclosure | PC V0 |
| Colour | pure white |
| Protection (IP) | IP20, according to EN 60529 |
| Connection | tool-free mountable spring clamp, max. 1,5 mm², cable entry via rear opening, predetermined breaking point (bottom) or drilling mark (top) |
| Mounting | flush-mounted on standard EU box (Ø=60 mm), surface-mounted flat on base using adhesive foil or screws, base part can be mounted and wired separately |
| Gefahrgut | No |
