VFG54+
VFG54+ BAT LRW
Contact sensor -35..+120 °C | LoRaWAN® (868 MHz) | Sensor probe, brass, spring loaded sensor
along the pipe or sideways
| Application/type | Contact sensor |
|---|---|
| Purpose | Measure values |
| Sensor elements | temperature |
| Measured values | temperature |
| Interface | LoRaWAN® (868 MHz) |
| On stock | No |
| Configuration | App, uConfig, LoRaWAN® Downlink |
| Sensor | SI-Protection against permeation of humidity and mechanical stress (e.g. vibration) |
| Radio technology | LoRaWAN® (868 MHz) |
| Data transmission | bidirectional |
| Operating range temperature (°C) | -35..+120 |
| Operating ranges temperature (°C) | -35..+120 |
| Operating range humidity | max. 85% rH short term condensation |
| Accuracy temperature | ±0,5 K (typ. at 21 °C) |
| Power supply | battery type AA (2x) |
| Material in touch with media | Sensor probe, brass, spring loaded sensor |

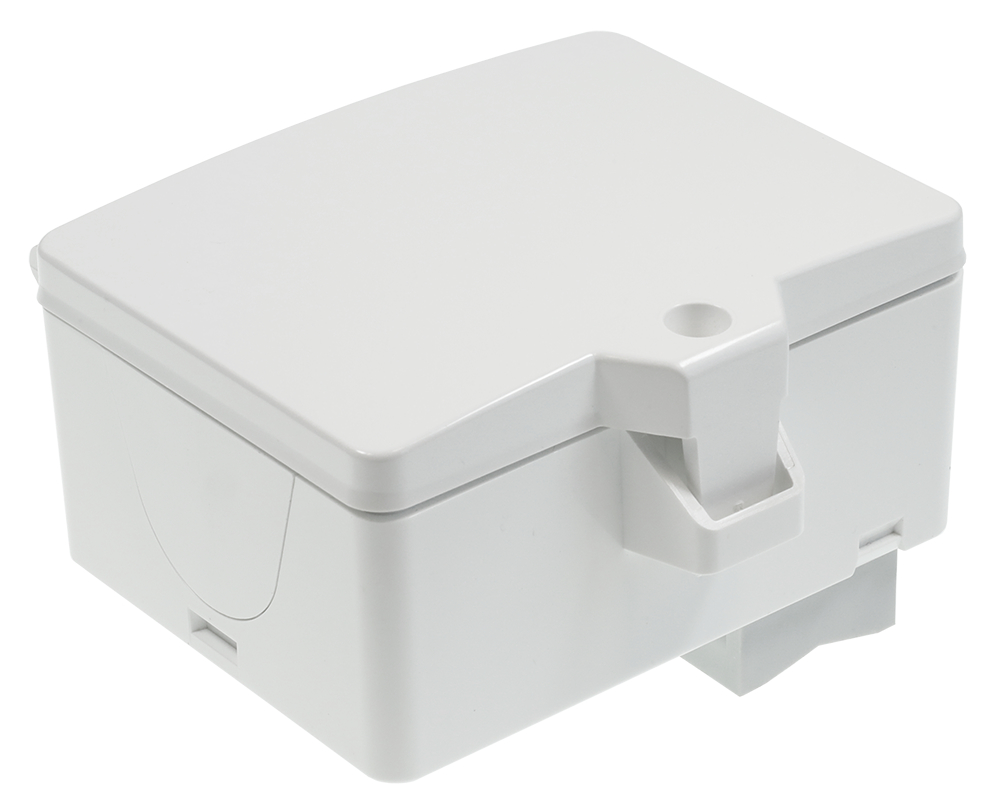

| Enclosure | USE-M, impact- and shock-resistant enclosure with quick-release cover, PC |
| Colour | pure white |
| Protection (IP) | IP65, according to EN 60529 |
| Mounting | along the pipe or sideways |
| Packaging length (mm) | 128 |
| Packaging width (mm) | 100 |
| Packaging height (mm) | 65 |
| Packaging | case packaging |
| Device length (mm) | 85 |
| Device width (mm) | 84 |
| Device height (mm) | 56 |
| Gefahrgut | No |
