| Application/type |

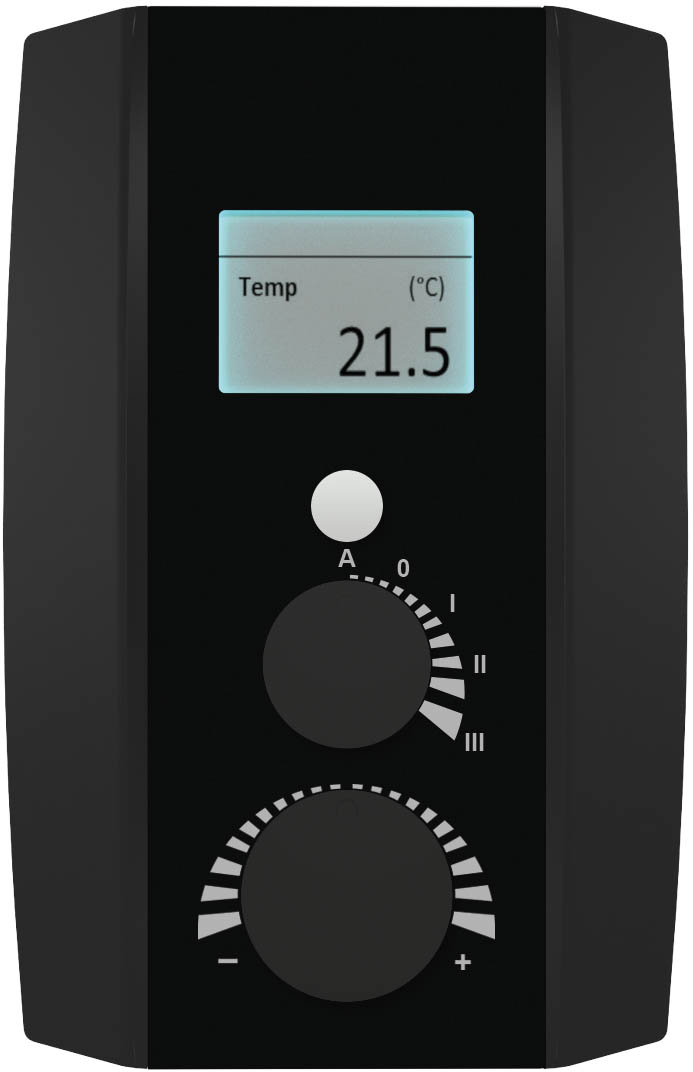

Room operating unit |
| Purpose |
Room Climate Control, Measure values |
| Measured values |
temperature, relative humidity, absolute humidity, enthalpy, dew point, CO2, VOC, CO2/VOC mix |
| Interface |
RS485 Modbus, RS485 BACnet, Passive, Active, 0..5 V, 0..10 V, 4..20 mA |
| Functions |
temperature control, fan control, presence |
| Operating functions |
setpoint adjustment temperature, fan stage adjustment, max. 5 stages, presence detection |
| Operating elements |

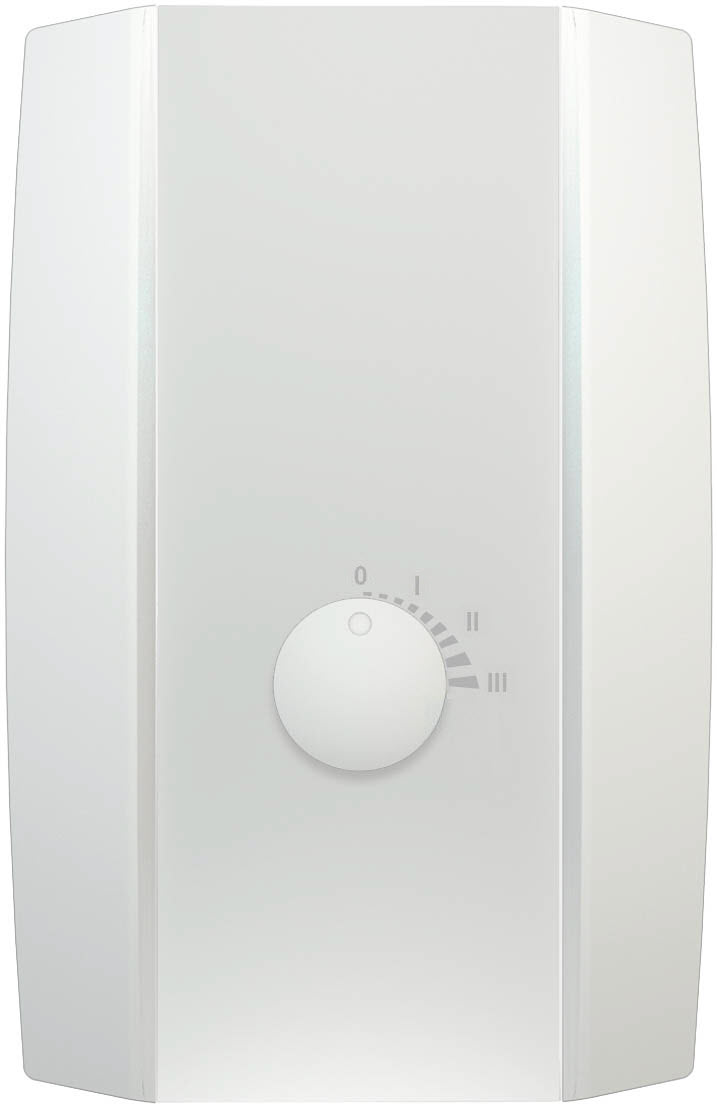

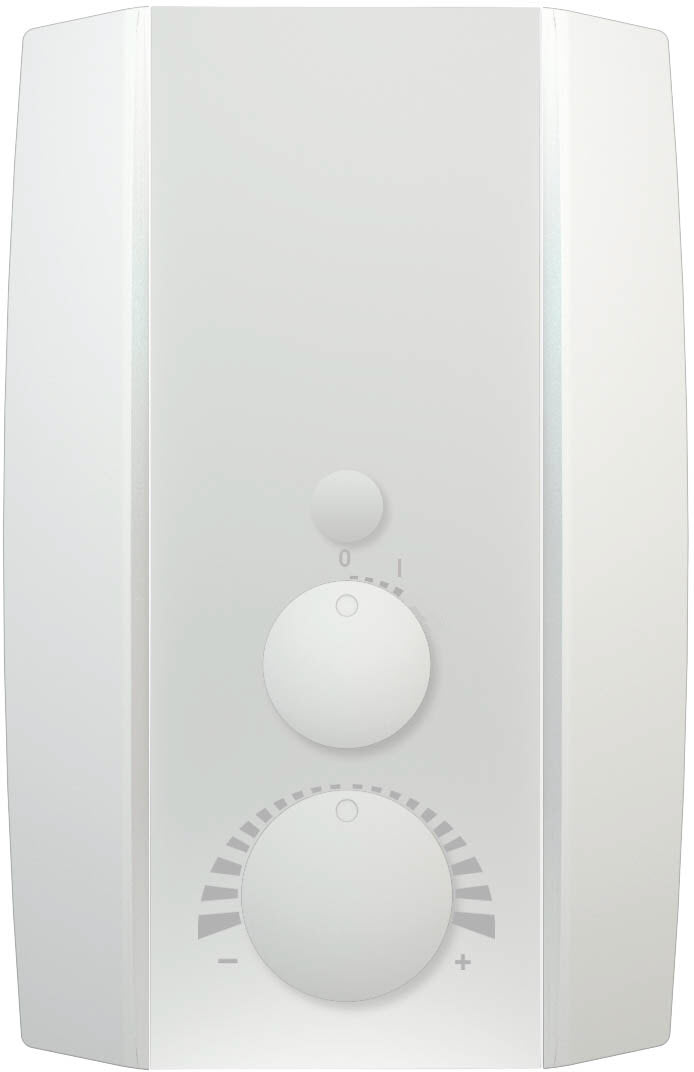

potentiometer (P), 10 kOhm, 1 kOhm, 5 kOhm, active 0..10 V, labelling {- [scale] +}, rotary switch (S), 2 fan stages, labelling {[scale] 0 I}, 3 fan stages, labelling {[scale] 0 I II}, 4 fan stages, labelling {[scale] 0 I II III}, 5 fan stages, labelling {[scale] A 0 I II III}, button (T), with LED 24 V =, colour configurable via jumpers (7 colours) |
| Configuration |
NOVOSapp, uConfig, BUS, jumper, ETS (KNX), (depending on type) |
| Sensor |
without sensor, NTC10k, Pt1000 DIN cl. B, Ni1000 DIN cl. B, Pt1000 1/3 DIN, Pt100 DIN cl. B, Ni1000TK5000, NTC20k, LM235Z |
| Output voltage |
0..10 V or 0..5 V, 2x 0..10 V or 0..5 V, 3x 0..10 V or 0..5 V, 4x 0..10 V or 0..5 V, adjustable via jumper, live-zero configuration via app or uConfig, min. load 10 kΩ |
| Output current |
4..20 mA, 2x 4..20 mA, 3x 4..20 mA, 4x 4..20 mA, max. load 500 Ω |
| Input |
1x input for NTC10k or floating contact, 1x input for floating contact, 2x input for floating contact |
| Network technology |
RS485 Modbus, RS485 BACnet (MS/TP), KNX (TP1) |
| Data transmission |
RTU, half-duplex, baud rate 9.600, 19.200, 38.400 or 57.600, parity: none (2 stop bits), even or odd (1 stop bit) |
| Operating range temperature (°C) |
-35..+70 |
| Output signal temperature |
0..+50 °C (default setting), selectable from 4 temperature ranges -50..+50 | 0..+50 | -20..+80 | -15..+35 °C |
| Operating range humidity |
max. 85% rH non-condensing |
| Accuracy temperature |
±0,5 K (typ. at 21 °C), within default measuring range, ±0,3 K (typ. at 0 °C), ±0,4 K (typ. at 0 °C), ±0,2 K (typ. at 25 °C, temperature dependend) |
| Measuring range humidity |
0..100% rH non-condensing, 0..85 KJ/kg enthalpy, 0..50 | 0..80 g/m³ absolute humidity, 0..+50 | -20..+80 °C dew point, optionally configurable |
| Accuracy humidity |
±2% between 10..90% rH (typ. at 21 °C) |
| Measuring range CO2 |
0..2000 ppm, 0..5000 ppm, optionally configurable |
| Accuracy CO2 |
±50 ppm +3% of measured value (typ. at 21 °C, 50% rH, 1015 hPa), self-calibration Dual Channel |
| Measuring VOC (mixed gas) |
heated metal oxide semiconductor |
| Power supply |
24 V = (±10%) SELV, 15..35 V = SELV, 19..29 V ~ SELV |
| Power consumption |
typ. 0,4 W (24 V =), 0,8 VA (24 V ~) |
| Display |
LCD 29x35 mm, RGB backlight, with traffic light function, threshold values configurable, optionally configurable via app or uConfig |
| Enclosure |
PC V0 |
| Colour |
pure white, black |
| Protection (IP) |
IP30, according to EN 60529 |
| Connection |
tool-free mountable spring clamp, max. 1,5 mm², removable plug-in terminal, max. Ø=0,8 mm, cable entry via rear opening, predetermined breaking point (bottom) or drilling mark (top) |
| Mounting |
flush-mounted on standard EU box (Ø=60 mm), flush-mounted in standard EU box (Ø=60 mm, depth min. 45 mm), surface-mounted flat on base using adhesive foil or screws, base part can be mounted and wired separately |
| Packaging length (mm) |
170 |
| Packaging width (mm) |
110 |
| Packaging height (mm) |
45 |
| Device length (mm) |
163 |
| Device width (mm) |
106 |
| Device height (mm) |
28 |
| Option enclosure |
LCD 29x35 mm, RGB backlight |
| Gefahrgut |
No |
