MWF+

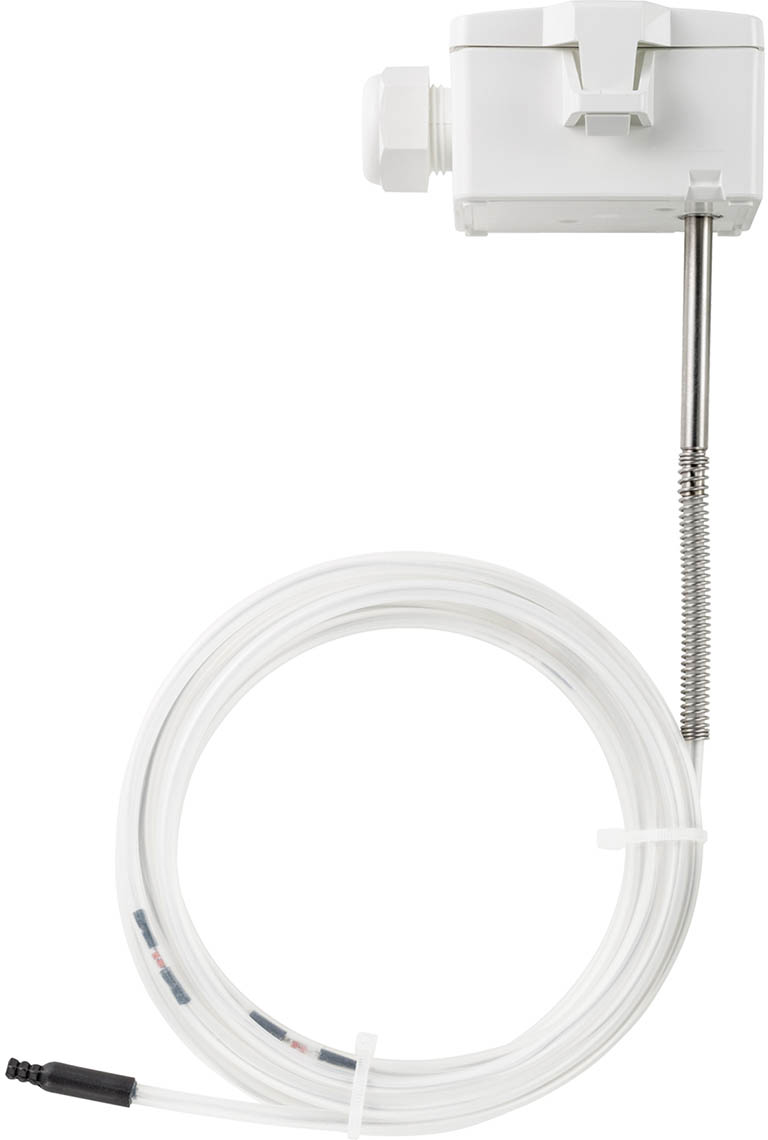

MWF+ NTC10k L6000
Duct averaging sensor 0..+50 °C | Passive | IP65 according to EN 60529
measures the mean temperature value selectively throughout the length of the sensor rod, 6000 mm
| Application/type | Duct averaging sensor |
|---|---|
| Purpose | Measure values |
| Sensor elements | temperature |
| Measured values | temperature |
| Interface | Passive |
| On stock | No |
| Sensor | NTC10k, passive |
| Operating range temperature (°C) | 0..+50 |
| Operating ranges temperature (°C) | 0..+50 |
| Operating range temperature enclosure (°C) | -35..+70 |
| Operating range humidity | max. 85% rH short term condensation |
| Accuracy temperature | ±0,2 K (typ. at 25 °C, temperature dependend) |
| Material in touch with media | measures the mean temperature value selectively throughout the length of the sensor rod |
| Installation length (mm) | 6000 |
| Enclosure | USE-S, impact- and shock-resistant enclosure with quick-release cover, PC |
| Colour | pure white |
| Protection (IP) | IP65, according to EN 60529 |
| Connection | removable cable entry flextherm M20 for wire Ø=4,5..9 mm, removable plug-in terminal, max. 2,5 mm² |
| Delivery content | incl. mounting flange, incl. mounting set (screws and accessories), incl. installation set |
| Packaging length (mm) | 220 |
| Packaging width (mm) | 310 |
| Device length (mm) | 63 |
| Device width (mm) | 68 |
| Device height (mm) | 100 |
| Weight (g) | 150 |
| Gefahrgut | No |
