NOVOS 5 x

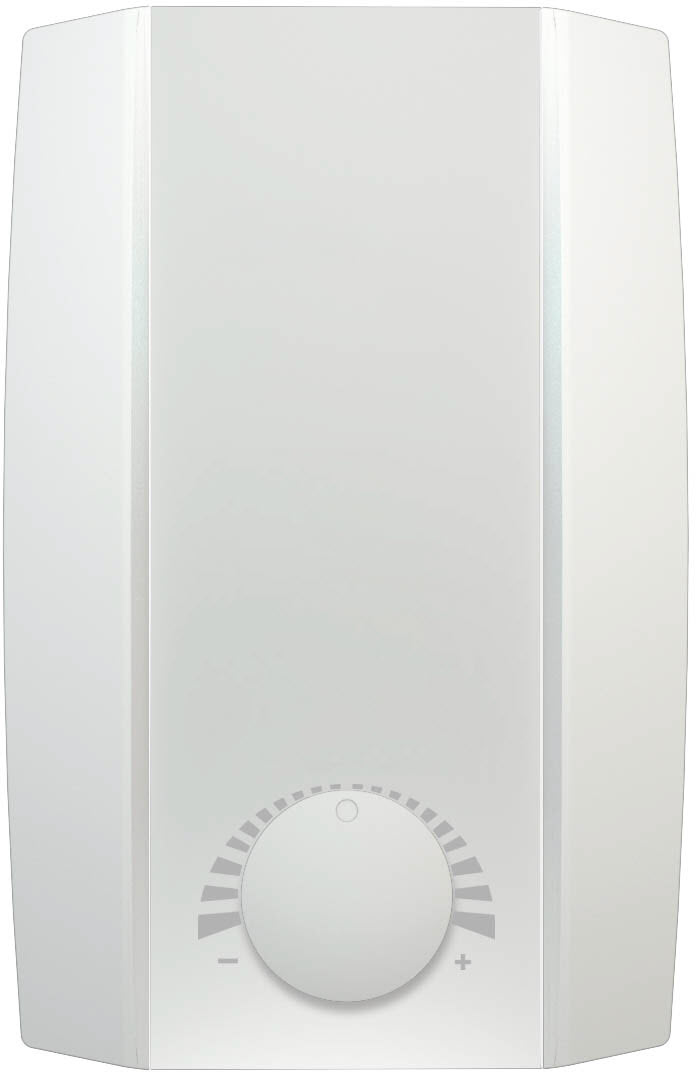

NOVOS 5 S white temp RS485 Modbus, FS5
Room operating unit temperature | RS485 Modbus | Room Climate Control, Measure values
Application/type | Room operating unit |
---|---|
Purpose | Room Climate Control, Measure values |
Measured values | temperature |
Interface | RS485 Modbus |
Functions | fan control |
Operating functions | fan stage adjustment, max. 5 stages |
Operating elements | rotary switch (S), 5 fan stages, labelling {[scale] A 0 I II III} |
Configuration | NOVOSapp, uConfig, BUS, jumper, (depending on type) |
Input | 1x input for floating contact |
Network technology | RS485 Modbus |
Data transmission | RTU, half-duplex, baud rate 9.600, 19.200, 38.400 or 57.600, parity: none (2 stop bits), even or odd (1 stop bit) |
Operating range temperature (°C) | -35..+70 |
Operating ranges temperature (°C) | -35..+70 |
Output signal temperature | 0..+50 °C (default setting), selectable from 4 temperature ranges -40..+60 | 0..+50 | -20..+80 | -15..+35 °C -50..+50 | 0..+50 | -20..+80 | -15..+35 °C |
Operating range humidity | max. 85% rH non-condensing |
Accuracy temperature | ±0,5 K (typ. at 21 °C), within default measuring range |
Power supply | 15..35 V = SELV, 19..29 V ~ SELV |
Power consumption | typ. 0,4 W (24 V =), 0,8 VA (24 V ~) |
Enclosure | PC V0 |
Colour | pure white |
Protection (IP) | IP30, according to EN 60529 |
Connection | tool-free mountable spring clamp, max. 1,5 mm², cable entry via rear opening, predetermined breaking point (bottom) or drilling mark (top) |
Mounting | flush-mounted on standard EU box (Ø=60 mm), surface-mounted flat on base using adhesive foil or screws, base part can be mounted and wired separately |
Packaging length (mm) | 170 |
Packaging width (mm) | 110 |
Packaging height (mm) | 45 |
Device length (mm) | 163 |
Device width (mm) | 106 |
Device height (mm) | 28 |
Option enclosure | LCD 29x35 mm, RGB backlight |
